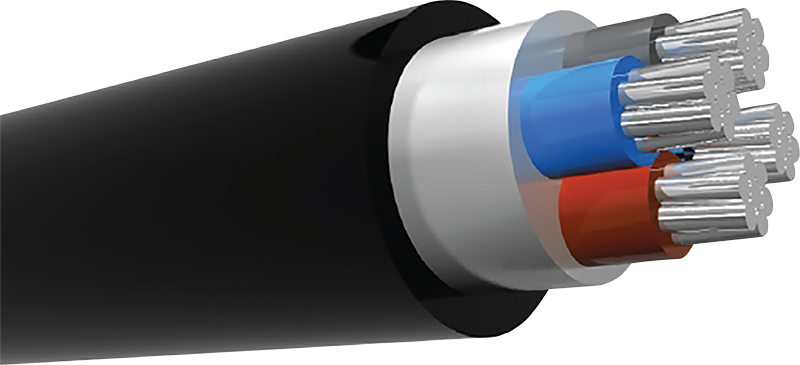

YAXV (NA2XY)
Brown
Blue
Brown
Blue
Green
Yellow
Brown
Blue
Black
Green
Yellow
Brown
Blue
Black
Gray
Green
Yellow
Overview
At power distribution stations, house hold premises, at industrial plants in cable ducts and pipes.Where there is no risk of mechanical damage. 0.6/ 1 kV XLPE Insulated Multi Core Cables With Aluminium Conductor YAXV 0.6/1 kV TS IEC 60502 NA2XY 0.6/1 kV VDE 0276
Cable Insulation Colors
2 Core
Brown, Blue
3 Core
Brown, Blue, Green-Yellow
4 Core
Brown Blue Black Green-Yellow
5 Core
Brown Blue Black Gray Green-Yellow
Standarts
Construction
Solid or stranded aluminium conductor
XLPE insulation
PVC filler
PVC outer sheath
Characteristics
Maximum operating temp. 70°C Max. Short Circuit Temp.: 250°C (Max 5 sec. sn) Test Voltage (AC): 3,5 kV Installation Temp. Min: -5°C
